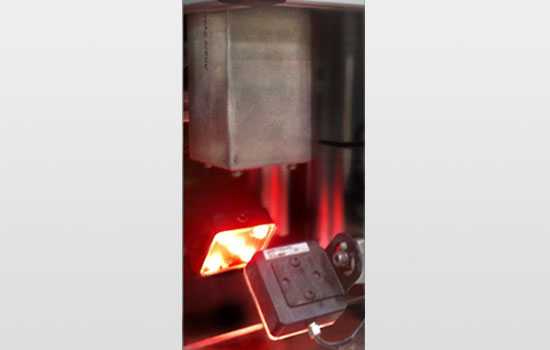

Angle Systems' Print Inspection system provides affordable quality control for your products. With our image processing software, alphanumeric print can be digitally read and checked for any defects. Using a high-speed camera, our cable print inspection system reads printed cables moving at speeds up to 500 feet per minute. Our specialized software will also identify and mark any print defects on the cable. User-friendly software and accurate print verification make our inspection system a convenient cost saving tool for your factory.

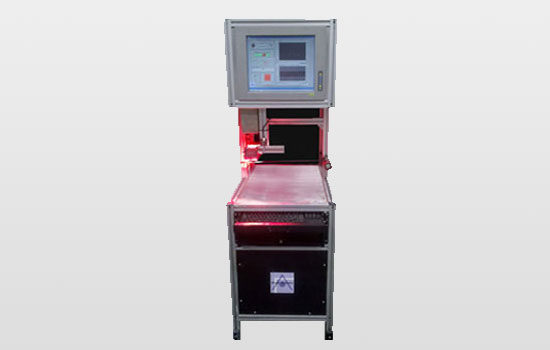

Print Inspection System

• Cable Diameter: 0.2" to 2.0"
• Line Speed: 500 ft/min
• Encoder: Quadrature

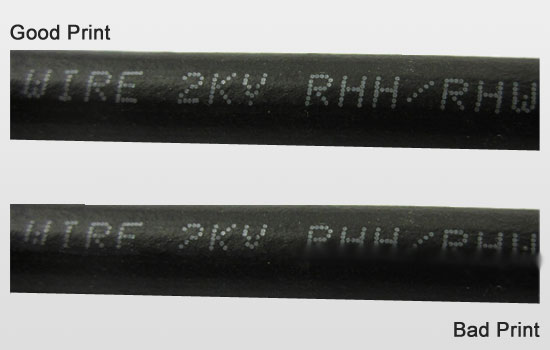

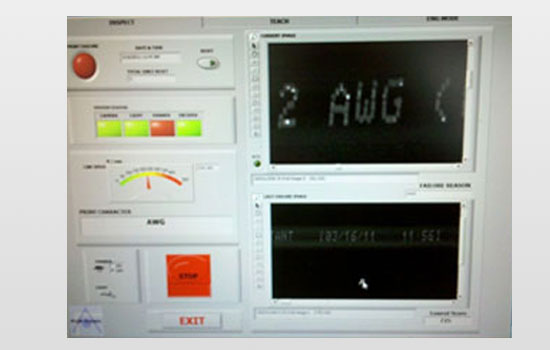

• Analysis: Identifies print defects such as ink smudge, partially or fully missing characters
• Warning method: Alerts operator either with a warning light or Alarm. Also Marker system is available as an option

Marker

• Clean, dry air supply
• Air Pressure: 80 psi
• Control Voltage: 24 VDC

Angle Systems' Print Inspection system has also been designed to provide affordable quality control for your products in high risk environments. The PI2 uses the same intuitively designed user interface within an independent workstation. The PI2 operates with the same specifications as the PI1 using a high-speed camera to read and check alphanumeric print for any defects while moving at speeds up to 500 feet per minute. Our specialized software will also identify and mark any print defects on the cable. User-friendly software and accurate print verification make our PI2 Inspection system a convenient cost saving tool for your factory.

The main advantage of PI2 is the separation of the inspection unit from the control unit so that the inspection unit can be installed in a space constrained environment.

Print Inspection System

• Cable Diameter: 0.2" to 2.0"
• Line Speed: 500 ft/min
• Encoder: Quadrature
• Analysis: Identifies print defects such as ink smudge, partially or fully missing characters
• Warning method: Alerts operator either with a warning light or Alarm. Also Marker system is available as an option

Marker

• Clean, dry air supply
• Air Pressure: 80 psi
• Control Voltage: 24 VDC
